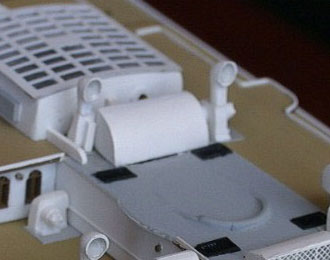

This
vent is incorrectly orientated and is in the wrong location.
The cowl part of the vent sat on the port side of the
motor housing not forward.
To
correct this.
- Modify
motor unit in preparation for gluing on the cowl vent
as described in the Motor
Unit section of the Vent Overview.
- Square off
the ducting using a file.
- Modify
the cowl vent as described in the Cowl
Vent section of the Vent Overview and glue onto
the motor unit facing aft.
- Locate the
vent further aft than the Deck marking (i.e.. closer
towards the front of No. 2 funnel) so it sits behind the
aft edge of the roof line of the Grand Staircase.
- Glue into
position making sure that the motor faces forward with
the fan housing slightly overlapping the trunk vent.
- Note:
The part is listed correctly as G33 in the instructions
but the artist has drawn a G25
|
